Fuel gas treatment system modificationAn F class GTCC unit tripped during the transfer from oil to gas fuel operation, and some condensate was found inside fuel gas system. This is because the gas fuel C6+ concentration was 10 times of that of initial designed gas fuel,. After quantitative study of several solutions, communicated with dozens of manufacturers , including gas filtering, gas heating, membrane supplier, etc, Gas & Aero Power provided the final fuel gas treatment system modification solution which meet the power plant customer’s needs, and will become an EPC project soon.

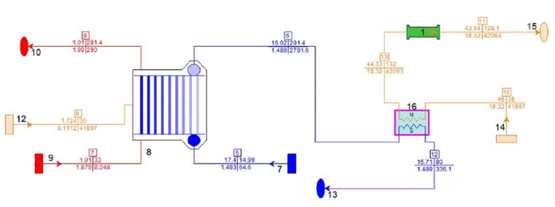

Modeling of Fuel gas heating system

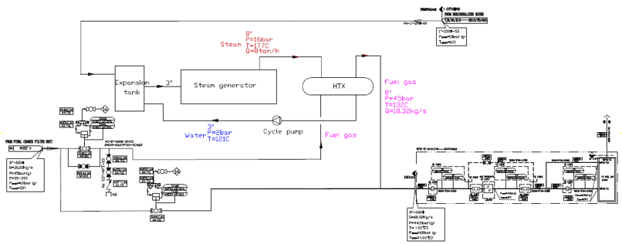

PID of modified Fuel gas heating system |
